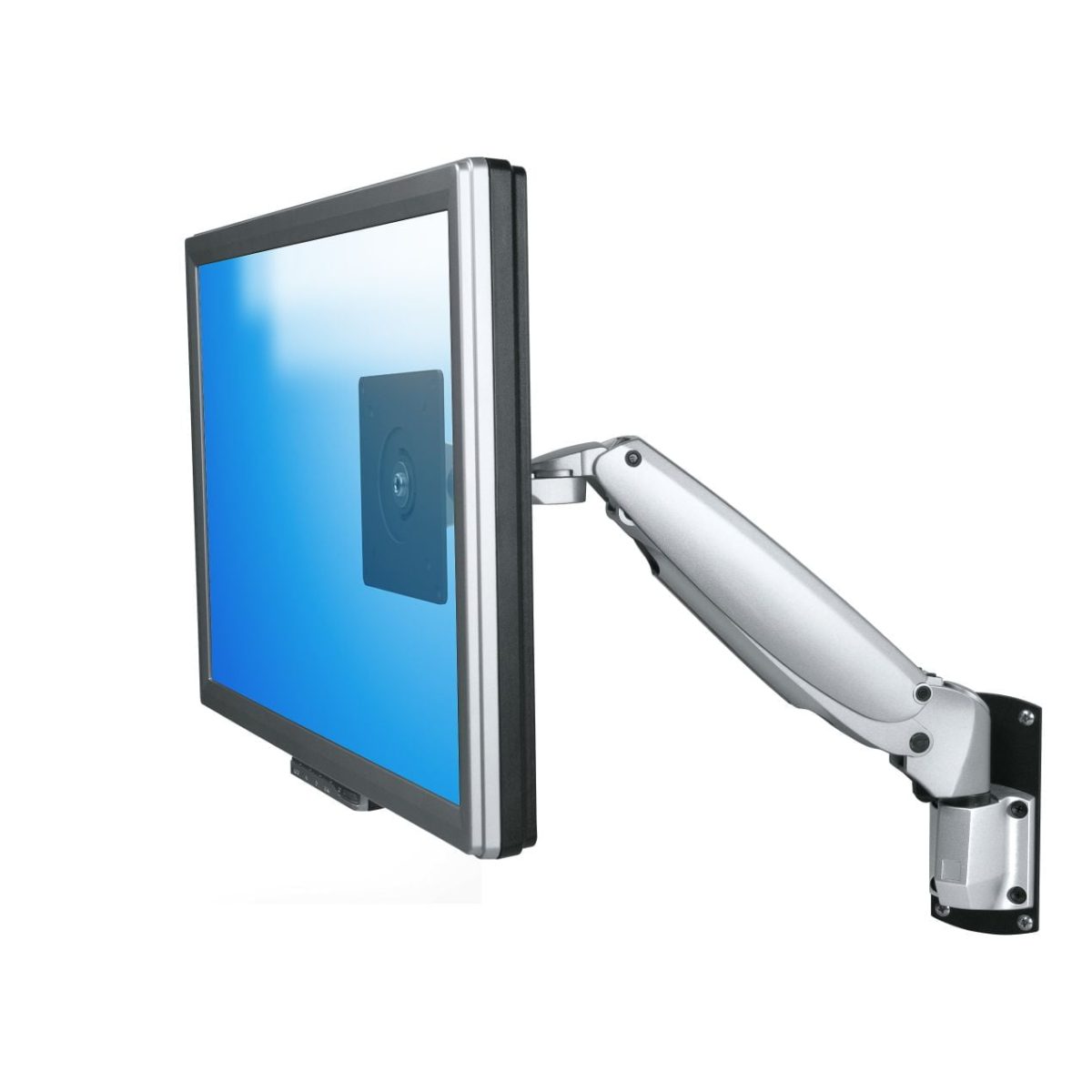

Dataflex Viewmaster Monitor Arm – Wall | 57.222

• Dynamic height adjustment range of 305 mm (12,0″)
• Dependent depth adjustment
• Partly integrated or concealed cable management
• Main components made of aluminium
• VESA MIS-D 75 x 75/100 x 100 mm compatible
• Monitor: tilt +90°/-90°, swivel +90°/-90°, rotate +90°/-90°
• Arm: swivel +90°/-90°
• Weight capacity min. 4,5 – max. 10 kg (9,9 – 22 lb) per monitor
• Comes with a wall mount
• Built-in SUSPA® gas spring
• Listed weight capacity will vary when mounting monitors that are deeper than 25 mm (1,0″) or have an off-centre VESA mount position
• Full product dimensions, weight and manual documentation is available to download from the description section below

Download Product Documentation:

57.222_ss_en_1.30

57.222_eco_en_1.0 – Ecosheet

57.222_im_1.3 – Installation Manual
